Data centres are no longer out-of-sight, out-of-mind facilities. Today’s hyperscale campuses and edge computing nodes sit inside urban fringe zones, next to residential streets, business parks, and schools. The servers inside run silent. The infrastructure keeping them cool and backed up does not.
Cooling towers, precision air conditioning units, diesel generators, and UPS exhaust stacks collectively produce constant broadband noise — 24 hours a day, 7 days a week, 365 days a year. Planning authorities in Auckland, Sydney, Melbourne, and Perth are now enforcing tighter operational noise limits on data centre sites. Operators who built to earlier consent conditions are being served improvement notices under more stringent frameworks.
This article covers what is driving the compliance crackdown, where the noise is actually coming from, and what acoustic solutions are being deployed on operational sites right now.
Why data centre noise has become a planning battleground
New Zealand is Hushtec’s home manufacturing base, giving AU/NZ operators a significant supply and lead-time advantage.
In New Zealand, data centre noise is assessed under resource consent conditions linked to NZS 6801 and the RMA. In Australia, state-level EPAs apply equivalent frameworks — NSW EPA’s Industrial Noise Policy, for example, uses similar LA90-referenced limits.
Three forces are converging: closer neighbours (residential development is eating into what were buffer zones), stricter environmental noise standards, and longer operating hours. Diesel generator testing, once tolerated at off-peak times, now draws formal complaints.

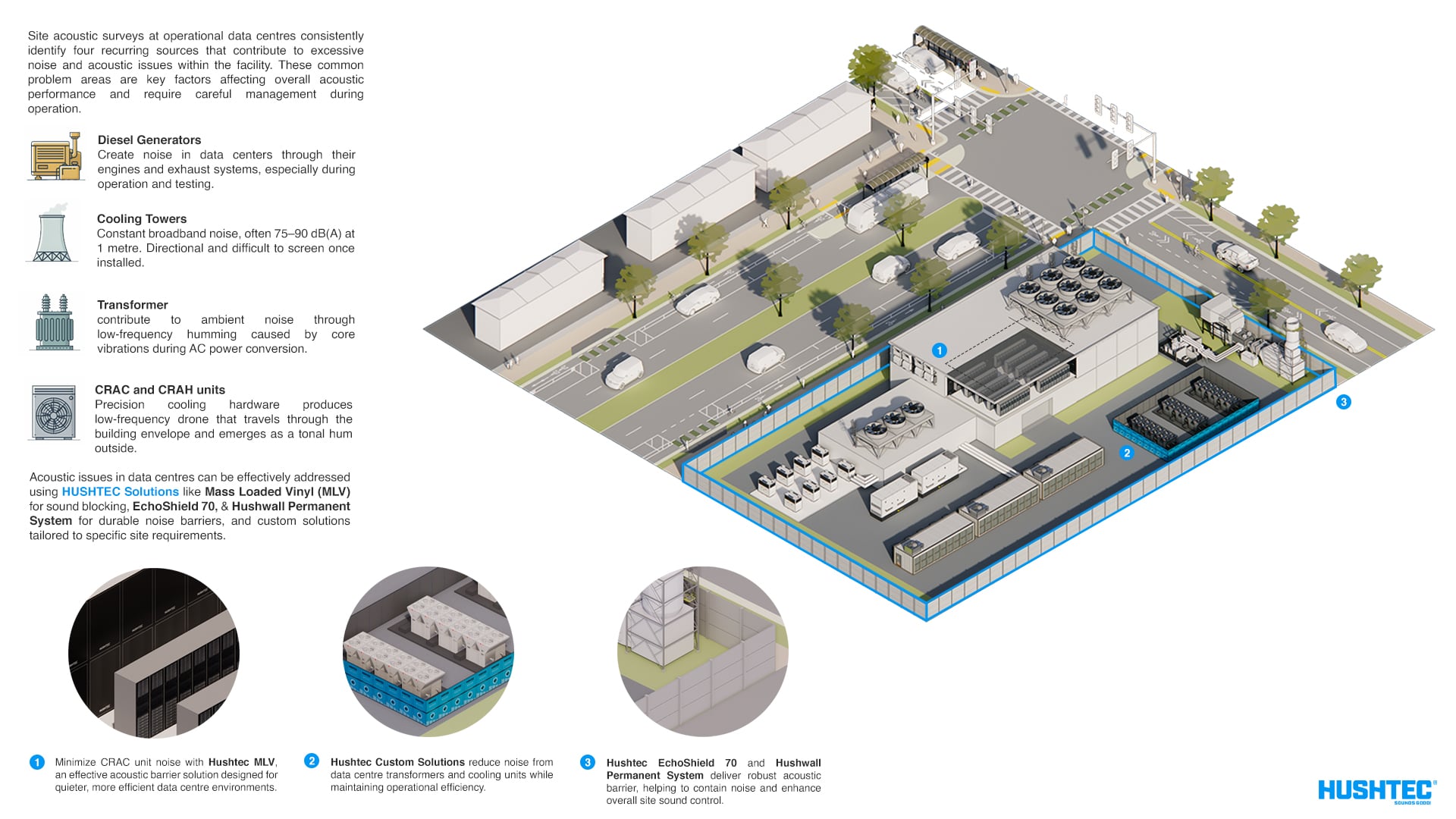

The four noise sources operators most underestimate
Site acoustic surveys on operational data centres consistently identify four recurring problem sources:
- Cooling tower fans — constant broadband noise, often 75–90 dB(A) at 1 metre. Directional and difficult to screen once installed.
- CRAC and CRAH units — precision cooling hardware produces low-frequency drone that travels through the building envelope and emerges as a tonal hum outside.
- Diesel generators — a single 2 MW standby set at full load produces 105–115 dB(A) at source. Even with integral enclosures, exhaust noise bleeds through louvres.
- UPS exhaust and transformer hum — 100 Hz and 200 Hz tonal components that a standard rating will not adequately address. Under NZS 6801, tonal noise attracts a penalty correction that can push a marginal site into non-compliance overnight.
What good compliance looks like under NZS 6801
Planning consent noise conditions under AS/NZS 4360 and NZS 6801:2008 now typically require operators to demonstrate that:
- Operational noise must not exceed background (LA90) by more than +5 dB(A) daytime and +3 dB(A) night-time at the nearest noise-sensitive receiver, with a +5 dB tonal penalty under NZS 6801.
- Generator test events are increasingly subject to time restrictions under Auckland Unitary Plan and equivalent council instruments in AU capital cities.
- Meeting these conditions on an existing site — one designed without acoustic retrofit in mind — is the challenge operators are calling suppliers to solve.
The assessment methodology matters. In New Zealand, data centre noise is assessed under resource consent conditions linked to NZS 6801 and the RMA. In Australia, state-level EPAs apply equivalent frameworks — NSW EPA’s Industrial Noise Policy, for example, uses similar LA90-referenced limits.
Solution approaches: what is being deployed
Effective data centre noise control follows a layered approach rather than a single product fix.

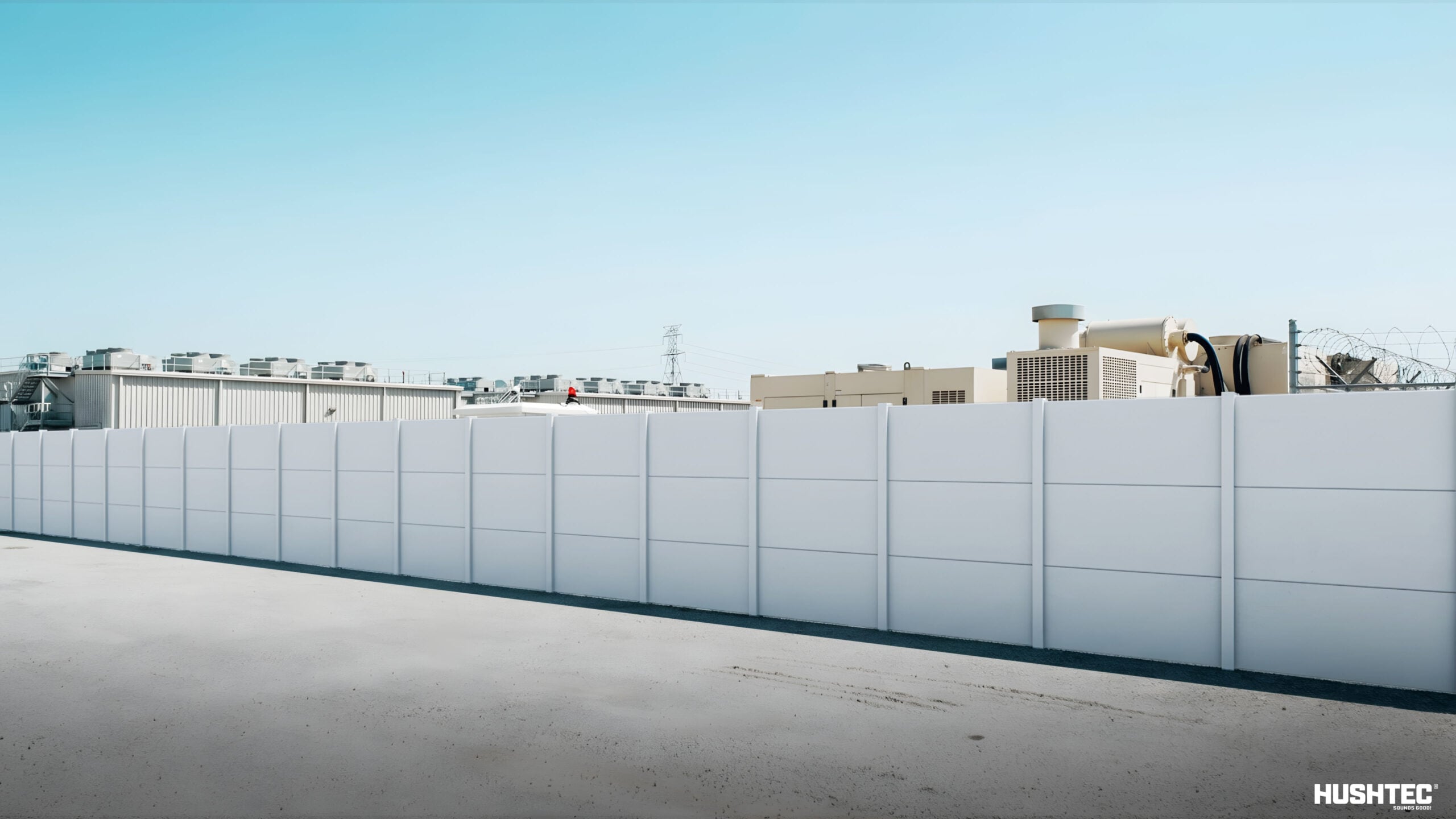

Permanent modular noise walls
Where cooling towers and generators are accessible from site perimeter, a permanent EchoShield-class wall system rated to 70 dB insertion loss provides the baseline shield. These systems are engineered to site-specific geometry — L-shaped, U-shaped, and full-enclosure configurations are all possible. Unlike poured concrete walls, modular systems can be reconfigured as plant layouts change.
Generator enclosure upgrades
Most standby diesel sets come with an OEM silencer rated to the base standard. That is rarely sufficient. Hushtec custom shrouds and MLV wrapping applied to the generator canopy, exhaust pipework, and louvre faces can deliver an additional 15–25 dB(A) over the OEM specification — without restricting cooling airflow or access for servicing.
Cooling tower screening
Free-standing or roof-mounted barrier systems around cooling towers must account for both direct noise radiation and reflection off adjacent building faces. Transparent barrier panels (Vision 5) are used on sites where visual access to equipment is required for operational monitoring — a common requirement on roof-level installations in urban areas.
Tonal noise treatment
Where CRAC units or transformers produce tonal hum, absorption panels installed inside plant rooms or on the inner face of generator enclosures break up the standing wave patterns. This is the intervention that barrier-only approaches consistently miss — and it is the one most likely to clear the tonal penalty correction under NZS 6801.
Procurement and lead time realities
Data centre operators working to an improvement notice typically have 90–120 days to demonstrate compliance. Custom acoustic systems on tight timelines are achievable but early engagement matters. Sites that contact Hushtec with three months’ notice consistently achieve better outcomes than those calling six weeks before a deadline.
Manufactured in New Zealand. AU/NZ operators benefit from shortest lead times globally — standard modular wall systems available within 2–4 weeks of order.
For operators planning new builds, the most cost-effective intervention is always at design stage. Specifying modular wall systems and enhanced generator enclosures at consent stage adds 2–4% to mechanical plant costs but avoids five-figure retrofit bills post-occupation.
Key takeaways
- Cooling tower and generator noise is the primary compliance risk on operational data centre sites — not server noise.
- Tonal noise components attract a planning penalty correction under NZS 6801 that can push a site into breach even when overall levels appear acceptable.
- A layered approach — permanent barriers, source enclosures, and absorption treatment — outperforms any single product intervention.
- Retrofit is achievable within improvement notice timescales, but requires early supplier engagement.
- Hushtec solutions are deployed on data centre sites across Auckland, Sydney, Melbourne and beyond. Contact us to discuss your site requirements.
Frequently Asked Questions
What noise regulations apply to data centres in AU / NZ?
Data centres in this region are primarily governed by AS/NZS 4360 and NZS 6801:2008. Operational noise must not exceed background (LA90) by more than +5 dB(A) daytime and +3 dB(A) night-time at the nearest noise-sensitive receiver, with a +5 dB tonal penalty under NZS 6801.
How much noise reduction can be achieved on a live site?
A layered approach — combining permanent modular walls, source enclosures, and absorption treatment — typically delivers 20–40 dB(A) reduction at the site boundary. The Hushtec EchoShield 70 system is independently tested to 70 dB insertion loss under ideal conditions; real-world performance on data centre sites typically delivers 25–35 dB depending on flanking paths and plant geometry.
Can barriers be installed without taking equipment offline?
In most cases, yes. Modular wall systems can be installed around operating cooling towers and generators without interrupting service. Generator enclosure upgrades may require a brief planned maintenance window — typically 4–8 hours — to apply wrapping to exhaust pipework.
What is the difference between a noise barrier and a noise enclosure for a data centre?
A noise barrier screens sound propagating in a specific direction. It works best when the source is fixed and the receptor is in a defined location. A noise enclosure surrounds the source on multiple or all sides, containing noise before it radiates. For cooling towers in open compounds, a three- or four-sided barrier is often sufficient. For generators with significant roof-level exhaust noise, a full enclosure or canopy upgrade is necessary.
How quickly can Hushtec supply and install?
Standard modular wall systems are available within 3–6 weeks from order confirmation. Custom-engineered enclosures require 6–10 weeks for manufacturing. Manufactured in New Zealand. AU/NZ operators benefit from shortest lead times globally — standard modular wall systems available within 2–4 weeks of order.
Do data centre acoustic solutions need to be fire-rated?
Where barriers or enclosures are installed within or adjacent to plant rooms, fire-rated materials are required. Hushtec offers fire-rated variants of its barrier and enclosure products. This is a specification detail that must be confirmed at survey and design stage.
